BLDC Fan Motor Wire Winding Machine with 1 mm Axis Length and Suitable Configuration

Ask Lasest Price
Brand Name :	PingSheng
Price :	$9,800.00 - $11,850.00/sets

Add to Cart

Product Details
Company Profile

BLDC Fan Motor Wire Winding Machine with 1 mm Axis Length and Suitable Configuration

Product Overview

Product Paramenters

Model	PS-W205	PS-W205M	PS-W205D
Configuration	Simple type	Standard type	Large Type
Configuration Characteristics	Suitable for wire winding of 4-pole stators	Added mold head fixing device,more advantages in winding thick wire and multi-stage stators	Added mold head fixing device and larger spacing between shafts,more advantages in wider range of stator outer diameter
Applicable Wire Diameter	Single 0.05-0.45mm	Single 0.05-0.7mm	Single 0.05-0.7mm
Applicable Stator Thickness	2mm-30mm	2mm-50mm	2mm-50mm
Applicable Motor Poles	2-4 poles	2-32 poles	2 poles-32 poles
Applicable Stator Outer Diameter	φ12-φ54mm	φ12-φ84mm	φ12-φ120mm
Wire Cutting Method	Cut off	Cut off	Cut off
Number Of Stations	2 stations	2 stations	2 stations
Number Of Control Axes	3-axis control	3-axis control	3-axis control
Flying Fork Speed	Max4500rpm	Max1000rpm	Max 1000rpm
Winding Accuracy	0.1°	0.1°	0.1°
Wire Arrangement Accuracy	0.01mm	0.01mm	0.01mm
Pole Change Accuracy	0.1°	0.1°	0.1°
Input Power	Single-phase AC220V±10% 50Hz	Single-phase AC220V±10% 50Hz	Single-phase AC220V±10% 50Hz
Rated Power	2KW	2KW	2KW
Overall Dimension	1200(L) x 600(W) x 1420(H)mm	1200(L) x 600(W) x 1420(H)mm	1200(L) x 600(W) x 1420(H)mm
Weight	About 250 kg	About 250 kg	About 250 kg
Application	Suitable for high-quality winding of various micro-motors, such as cooling fans, brushless DC motors, magnetic motor stators, etc.			Suitable for high-quality winding of various micro-motors such as cooling fans, brushless DC motors, magnetic motor stators, etc.
Efficiency Reference	Based on 12-pole stator with outer diameter φ48mm, winding wire diameter φ0.5mm, and 25 turns per pole, the efficiency is about 70pcs/h.			Take 12-pole stator with outer diameter φ48mm, wire diameter φ0.5mm, 25T per pole for example, the efficiency is about 70pcs/h.

Products Description

Two-Station Coarse Wire Winding Machine PS-W205

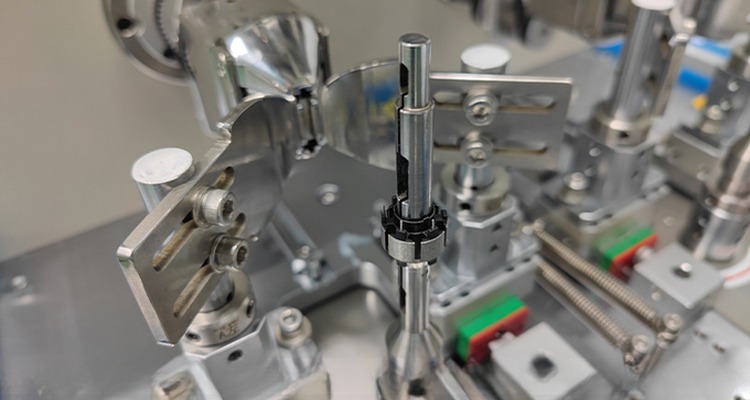

1.The main structure of the equipment adopts one-piece modular casting,high strength and stability. 2.All the electronic control and mechanical components of the equipment adopt the first-line mainstream brands, the winding is more flat. 3.The mould rod adopts unique self-locking technology, easy to take and put the stator. 4.The fixture adopts modular design, can be quickly replaced. 5.Aluminium alloy safety protection cover is adopted, which is safe, simple and beautiful. 6.Ssuitable for high-quality winding of various micro-motors, such as cooling fans, brushless DC motors, magnetic motor stators, etc.

Wide range of applications

Pingsheng winding machines are widely used for high-quality winding of various micro-motors, such as cooling fans, brushless DC motors, magnetic motor stators, etc.
